A cocoa powder grinding machine is a specialized industrial milling equipment designed to pulverize cocoa cake into fine, uniform cocoa powder suitable for food manufacturing, confectionery, and beverage production. Utilizing high-speed impact, shear, and friction between movable and fixed tooth discs, this machine achieves precise particle size control with adjustable fineness ranging from 20 to 120 mesh.
Engineered for commercial-scale operations, the cocoa powder grinder features eight capacity models (20-3000 kg/h), GMP-compliant all-stainless-steel construction, and energy-efficient motor systems. Compared to conventional grinders, it delivers 30% lower energy consumption, minimal heat generation to preserve cocoa aroma, and tool-free screen replacement for rapid fineness adjustment. Ideal for chocolate manufacturers, food processors, and spice grinding applications seeking consistent quality and regulatory compliance.
With 20+ years of food processing equipment expertise, Shuliy cocoa grinding machines are CE, ISO, and SGS certified, backed by comprehensive after-sales support including lifetime technical assistance and multilingual service teams.
Core Technical Specifications
| Model | Capacity (kg/h) | Feed Particle Size (mm) | Fineness (mesh) | Power (kW) | Spindle Speed (r/min) | Dimension (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 15B | 20–150 | <10 | 20–120 | 2.2 | 6000 | 550×400×850 | 150 |
| 20B | 40–200 | <10 | 20–120 | 4 | 4500 | 600×550×1250 | 280 |
| 30B | 80–400 | <12 | 20–120 | 7.5 | 3800 | 700×600×1450 | 340 |
| 40B | 100–800 | <15 | 20–120 | 11 | 3400 | 900×800×1550 | 450 |
| 50B | 150–1000 | <18 | 20–120 | 15 | 3000 | 1050×850×1750 | 600 |
| 60B | 250–1500 | <20 | 20–120 | 22 | 2800 | 1100×900×1880 | 900 |
| 80B | 350–2000 | <25 | 20–120 | 30 | 2400 | 1200×950×2000 | 1250 |
| 100B | 500–3000 | <28 | 20–120 | 37 | 2000 | 1350×1000×2100 | 1580 |
Working Principle and Technical Operation

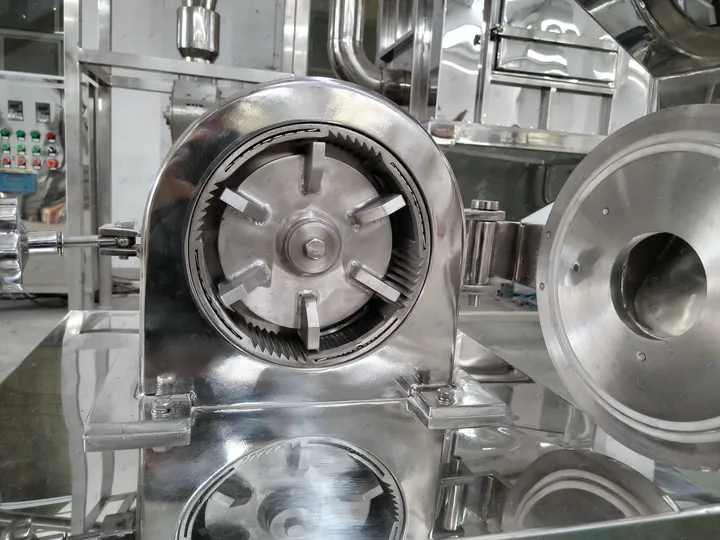

The cocoa powder grinding machine operates on an advanced impact-shear grinding mechanism. The core grinding assembly consists of a high-speed rotating movable tooth disc and a stationary fixed tooth disc. When cocoa cake or pre-processed material enters the grinding chamber through the feed hopper, it undergoes multiple crushing stages:
- Impact Crushing: Material particles are struck by high-speed rotating teeth (up to 6000 r/min on smaller models), causing initial fragmentation through kinetic energy transfer.
- Shear Force: As material moves radially outward between the tooth gaps, differential velocity creates shear stress that further reduces particle size.
- Friction Grinding: Particle-to-particle and particle-to-tooth friction generates additional size reduction, especially effective for oily materials like cocoa.
- Classification: Ground material passes through an interchangeable screen mesh at the chamber exit. Particles meeting the target fineness (20-120 mesh) discharge, while oversized particles recirculate for further grinding.
The entire machine is manufactured according to GMP (Good Manufacturing Practice) standards, featuring food-grade 304 stainless steel construction throughout all contact surfaces. This ensures corrosion resistance, prevents contamination, and facilitates easy cleaning and sanitation between production runs.
Machine Structure and Key Components
- Base Frame: Heavy-duty welded steel frame with vibration-dampening mounts ensures stable operation even at maximum spindle speeds.
- Grinding Chamber: Sealed stainless steel chamber with water cooling jacket (on models 40B and above) to prevent heat buildup that could degrade cocoa quality.

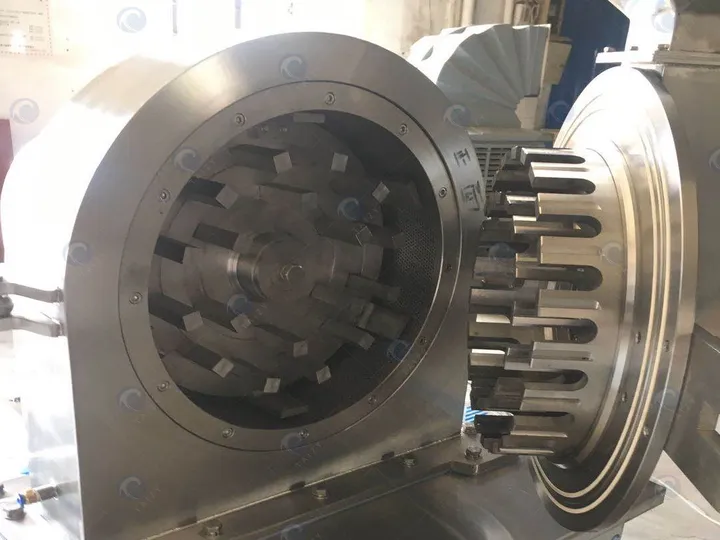

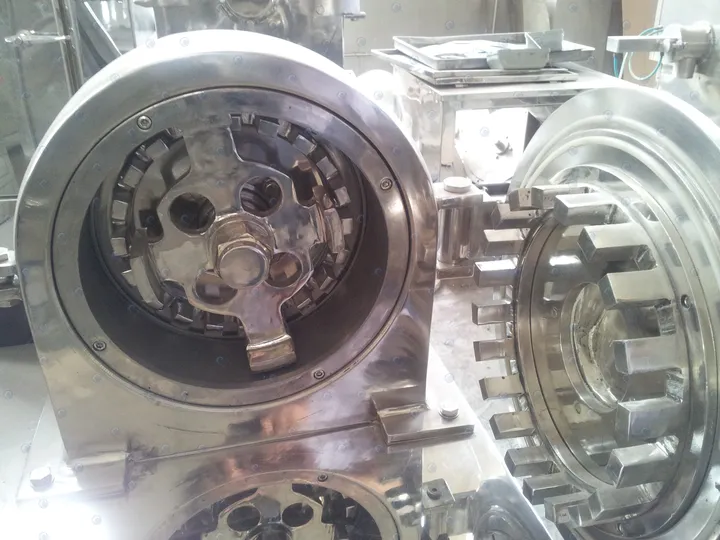

- Tooth Disc Assembly: Precision-machined movable and fixed tooth discs made from hardened stainless steel, heat-treated for extended wear resistance.

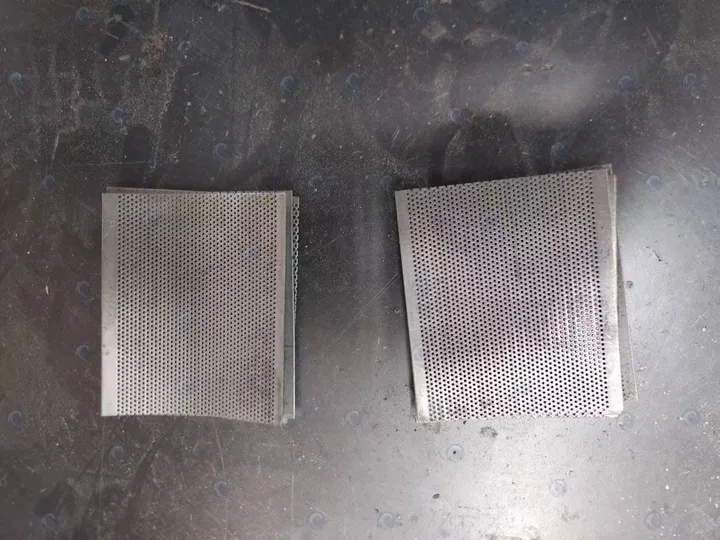

- Screen Holder: Quick-release clamp system allows screen changes in under 2 minutes without tools.

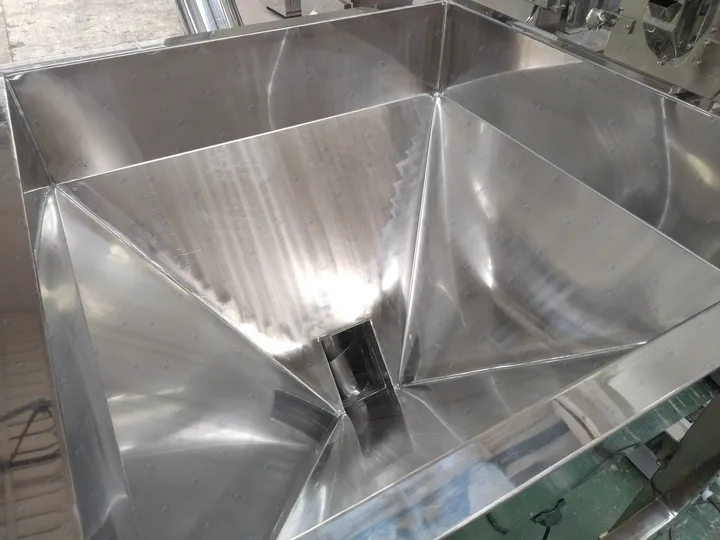

- Feed Hopper: Large-capacity tapered hopper with flow control gate for uniform material feed rate.
- Drive System: Direct-coupled motor with overload protection, mounted on adjustable base for belt tension maintenance.
- Discharge Outlet: Flanged outlet compatible with standard packaging equipment, cyclone separators, or pneumatic conveying systems.
Applications and Processable Materials
While optimized for cocoa powder production, this versatile grinding machine handles a wide range of dry to semi-oily materials across multiple industries:
| Industry | Materials | Typical Fineness |
|---|---|---|
| Food Processing | spices (cinnamon, pepper, chili), sugar, salt, dried vegetables, grain flours | 40–120 mesh |
| Pharmaceutical | Herbal extracts, dried roots, medicinal powders, food additives | 60–120 mesh |
| Chemical | Pigments, dyes, resin powders, cosmetic ingredients | 20–80 mesh |
| Agricultural | Animal feed additives, fertilizer powders, plant-based materials | 20–60 mesh |
Why Shuliy Cocoa Grinding Machines Outperform Competitors?
| Feature | Shuliy Cocoa Grinder | Standard Market Grinder |
|---|---|---|
| Construction Material | Full 304 stainless steel, GMP certified | Partial stainless, some carbon steel |
| Fineness Range | 20–120 mesh (adjustable) | 40–80 mesh (limited) |
| Cooling System | Water-cooled chamber (models 40B+) | Air-cooled only |
| Screen Change Time | < 2 minutes, tool-free | 10–15 minutes, requires tools |
| Energy Efficiency | 30% lower power consumption | Standard consumption |
| Noise Level | < 75 dB with sound enclosure | 85–90 dB |
| Certifications | CE, ISO 9001, SGS, TUV | Basic CE only |
| Warranty | 1 year + lifetime support | 6 months limited |
Key Advantages for Production Efficiency
Precision Grinding
Uniform particle size distribution ensures consistent product quality and optimal solubility for cocoa powder applications.
Low Temperature Operation
Water cooling system maintains material temperature below 45°C, preserving volatile cocoa aromas and preventing fat migration.
Energy Efficient
Optimized motor sizing and direct-drive transmission reduce power consumption by 25-30% compared to belt-driven systems.
Easy Maintenance
Hinged grinding chamber door, quick-release screen holder, and externally accessible lubrication points minimize downtime.
Hygienic Design
Polished stainless steel surfaces (Ra ≤ 0.8 μm), rounded internal corners, and sealed bearings prevent bacterial growth and cross-contamination.
Scalable Capacity
Eight models from lab-scale (20 kg/h) to industrial production (3000 kg/h) allow seamless production scaling.
Customer Success Stories and Real-World Performance
Case Study: West African Cocoa Processor
Client: Cocoa Products Ltd., Ghana
Equipment: Shuliy Model 60B Cocoa Powder Grinding Machine
Production Requirement: 1200 kg/h cocoa powder, 80 mesh fineness
Results After 18 Months:
- Achieved consistent 80-mesh fineness with 95% pass rate
- Reduced power costs by 28% compared to the previous German-made grinder
- Zero unplanned downtime; scheduled maintenance only
- Product quality met EU export standards for particle size distribution. The Shuliy grinder has been running 16 hours daily for over a year without any major issues. The particle size consistency has improved our chocolate coating quality significantly, and our customers have noticed the difference.”— Operations Manager, Cocoa Products Ltd.
Why Choose Shuliy Machinery?
- 20+ Years of Expertise: Specialized in nut and food processing equipment since 2003
- International Certifications: CE, ISO 9001:2015, SGS, TUV Rheinland certified manufacturing
- Global Installations: 5,000+ machines operating in 85 countries across 6 continents
- R&D Capability: In-house engineering team with continuous product improvement
- Quality Control: 100% factory acceptance testing (FAT) before shipment
- Comprehensive Warranty: 12-month full warranty covering all components
- Lifetime Support: Free technical consultation and troubleshooting for machine lifespan
- Multilingual Team: English, Spanish, French, Arabic-speaking engineers available
- Spare Parts: Complete parts inventory with 48-hour dispatch guarantee
- Installation Support: Video guidance, on-site commissioning (optional), detailed manuals
FAQ
What is the typical lead time for a cocoa powder grinding machine?
Standard models (15B-50B) are typically in stock and ship within 7-10 days. Larger capacity models (60B-100B) require 15-20 days for manufacturing and testing. Custom voltage or configuration requests may add 5-7 days.
Can the machine handle cocoa nibs directly, or only cocoa cake?
This grinder is optimized for cocoa cake (after oil pressing). For large pieces of cocoa nibs from which cocoa butter has already been extracted, we recommend first using our coarse crusher to grind them into small granules, and finally grinding them into a fine powder.
How do I determine the right model for my production needs?
Consider your hourly capacity requirement, available floor space, and power supply. For example, if you need 800 kg/h, the Model 40B (100-800 kg/h) would be suitable. Our engineers can provide detailed recommendations based on your specific raw material characteristics and target fineness.
What is the screen mesh replacement procedure and cost?
Screen replacement takes under 2 minutes with our quick-release system. Standard screens (20-120 mesh) are included with the machine. Additional screens cost depending on the model. We recommend keeping 2-3 spare screens for different product specifications.
Is the machine suitable for explosive dust environments?
For facilities with explosive dust requirements, we can provide explosion-proof motor upgrades and anti-static components as optional extras. Please consult our engineering team for hazardous location configurations.
What maintenance is required for optimal performance?
Daily: Check lubrication and clean exterior. Weekly: Inspect screen for wear, verify belt tension. Monthly: Grease bearings, check tooth disc wear. Annual: Complete overhaul including bearing replacement if needed. Detailed maintenance schedules are provided in the operation manual.
Related Products and Complete Production Line Solutions
For a complete cocoa powder production line, consider integrating the cocoa powder grinding machine with these complementary systems:
Upstream Equipment:
- Cocoa Bean Roaster – Uniform roasting for optimal flavor development
- Cocoa Bean Peeling Machine – Efficient shell removal
- Cocoa Bean Grinder – Produces cocoa liquor from nibs
- Hydraulic Oil Press – Extracts cocoa butter to produce cocoa cake
Downstream Equipment: - Powder Mixer – Blends cocoa powder with additives
- Vibrating Sifter – Final particle size classification
- Cocoa Powder Packing Machine – Automated bagging and sealing
- Complete Production Line – Turnkey solution from bean to powder
Ready to optimize your cocoa powder production? Contact our engineering team today for a customized solution and competitive quotation. All machines include factory acceptance testing, detailed operation manuals, and lifetime technical support.
