The automatic peanut candy production line is a machine that produces peanut candy. The basic production steps are sugar boiling, raw material mixing, peanut candy molding, and packaging. This production line can make peanut candies, sesame candies, and melon seed candies, and the raw materials can be automatically matched without affecting the production process. The fully automated production line has high production efficiency and controllability.
This production line has a capacity of 300–400 kg/h. It includes a peanut roasting machine, peanut peeling machine, jacketed kettle, peanut mixer, chain-plate fully automatic block pressing and cutting machine, cooling conveyor, and packaging machine. All parts in contact with the peanuts are made of SUS 304 stainless steel, ensuring no contamination and easy cleaning.
Peanut Candy Production Video
Raw Materials for Peanut Candy
The main raw materials for a peanut candy production line include peanut kernels, sugar (white sugar or maltose), a small amount of edible oil, and optional sesame seeds and salt as needed.
Finished Product

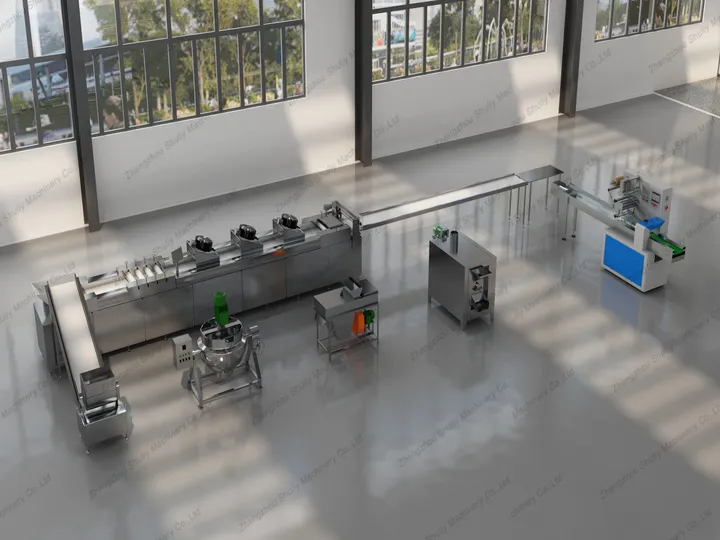

Automatic Peanut Candy Production Line Process Flow
Roasts raw peanuts to enhance flavor and remove moisture, preparing them for peeling and candy making. Roasting temperature and time are adjustable to ensure even heating without burning or undercooking. Heating can be electric or gas
Removes the red skin and shells from roasted peanuts, improving purity and ensuring a smooth texture in the candy. The machine is safe, efficient, and minimizes peanut breakage.

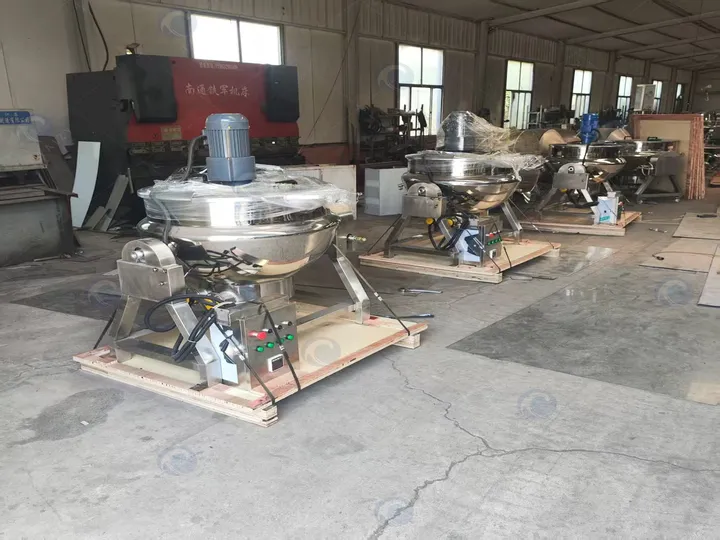

Jacketed Kettle
The jacketed pot is a device used to melt and boil the sugar. Boiling sugar is an indispensable step for making peanut candy. The jacketed pot is equipped with a thermometer for easy temperature control. The machine has a cooking and mixing function, which is very convenient. The machine material is 304, an edible grade, and it is safe after heating for a long time. In addition, the machine is equipped with a special handle, and the pot body can be dumped, which is controlled by the handle of the machine. This machine can be used to boil sugar, heat raw materials, make chili sauce, melt chocolate sauce, etc. It is suitable for canteens, food processing plants, and other places.

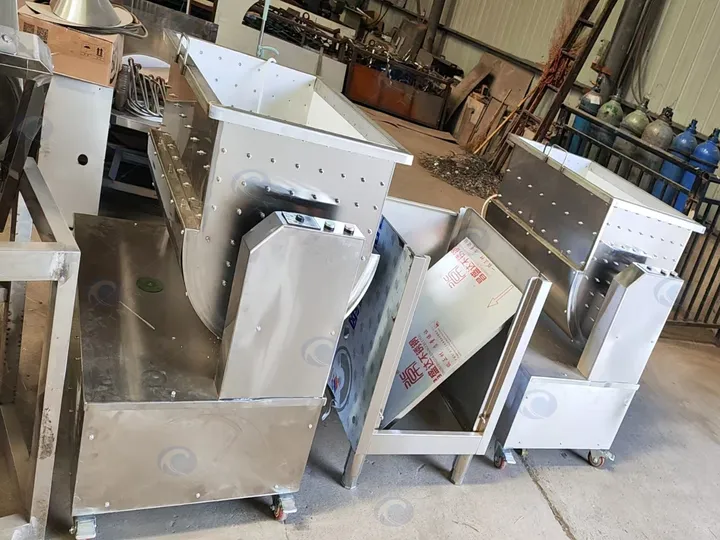

Peanut Mixer
The mixer evenly combines boiled sugar with peanuts, keeping ingredients warm with double-layer heat preservation. Optional additions like sesame can be added. It holds about 50 kg per batch, has a stainless steel shell with PTFE lining, and includes a temperature monitor for consistent mixing.

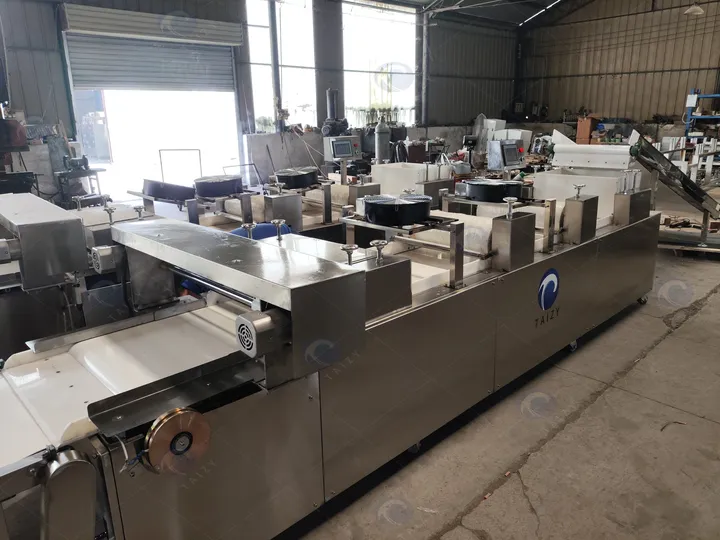

Chain-Plate Fully Automatic Pressing & Cutting Machine
The peanut brittle molding machine is a machine that shapes mixed materials. The peanut forming machine includes three parts: rolling, forming, cutting, and cooling. Through these steps, the peanut candy is made into a block.

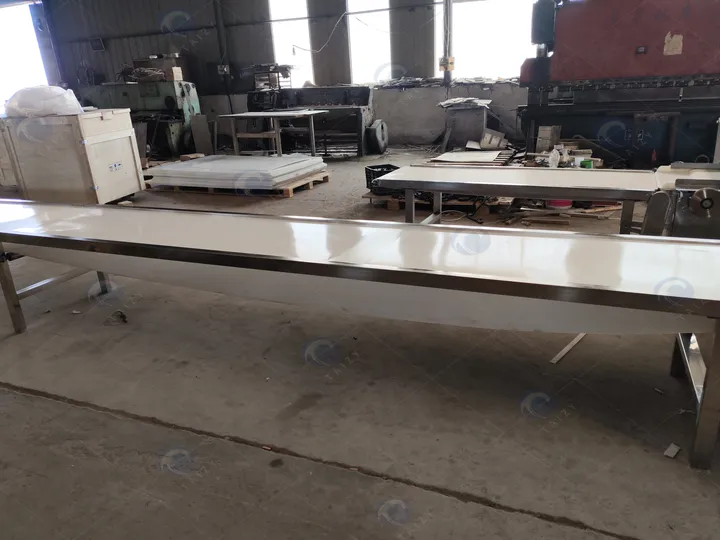

Cooling Conveyor
Cools the freshly pressed candy blocks to a suitable temperature for packaging, preventing deformation or sticking and ensuring a smooth, flat appearance.
How is Peanut Brittle Formed?
Put the mixed material on the peanut brittle forming machine, the machine will roll it, because the sugar is added to the material, it will make the peanut brittle very easy to form. The peanut brittle forming machine usually has four pressure rollers to ensure the peanut The flatness of the sugar surface and the height of each pressing roller can be adjusted. These pressing rollers directly control the thickness of our peanut candy product, that is, the height of the peanut candy. Each wheel can be adjusted individually. You can adjust the thickness of the peanut candy gradually, or you can agree to set it to a height.
Peanut Candy Bar Diced
The peanut candy we eat is not only different in taste, but the nuts added are also different in size, so the unique formula in production has formed a different peanut candy taste, and our peanut production machine can control the size of peanut candy, This can be combined with the requirements of peanut sugar production customers to carry out the design of the machine.
Peanut Candy Production Line details
Each manufacturer’s peanut candy has different sizes, more specifically, it has a different length, width,s, and height. Then the height of the peanut candy is adjusted by the height of the pressure roller of the peanut candy molding machine, so the manufacturer can It can be set it freely. In addition, the width of the conveyor belt and the distance between the cutters control the width and length of the peanut sugar forming machine. The width of the conveyor belt designed by the factory is 560mm. Perform cross-cutting, then a piece of peanut candy is basically formed.
If you want to use one machine to produce different peanut candies, or it is convenient to produce other candies in the future, then don’t worry, this machine can change the size of the peanut candies. The width of the peanut candies is determined by the spacing of the cutters. If you want to change the size, you only need to change a different knife and match the height of the cross-cutting knife and the pressure roller, and you can change the size of the peanut candy freely.
Configuration List of 300–400 kg/h Peanut Brittle Production Line
| Name / Pictures | Technical Parameters | Remarks / Function |
|---|---|---|
| Peanut Roaster | Model: TZM-1 Motor: 1.1 kW Heating power: 23 kW Capacity: 80–120 kg/h Size: 3000×1200×1700 mm | Electric heating; stainless steel; Roasts peanuts to remove moisture and enhance flavor |
| Peanut Peeling Machine | Motor: 0.55 kW Fan: 0.75 kW Capacity: 200–300 kg/h Voltage: 380V/220V, 50 Hz Purity: 98%Size: 1100×400×1100 mm | Peels roasted peanuts |
| Sugar Boiled Pot | Model: TZ-200L Size: 950×950×800 mm Weight: 120 kg Power: 18 kW | Electric heating; with stirring; tiltable; 304 stainless steel; used to cook syrup, honey, or concentrate |
| Mixing Machine | Power: 1.1 kW Voltage: 380V/50 Hz Size: 700×500×1400 mm Capacity: 15 kg/batch | Stainless steel; double-layer with heat preservation; mixes peanuts with syrup and other ingredients |
| Ascension Conveyor | Power: 0.37 kW Voltage: 380V/50 Hz Size: 2500×820×1080 mm | Stainless steel surface; PVC belt; transports material to cutting machine |
| Cutting & Forming Machine | Model: TZ-68 Power: 2.5 kW Motor: 380V/50 Hz Capacity: 300–400 kg/h Size: 6500×1000×1200 mm Belt width: 560 mm Weight: 1000 kg | Cuts candy into desired sizes |
| Cooling Conveyor | Voltage: 380V/220V Power: 0.37 kW Size: 5000×1000×800 mm | Stainless steel; PVC belt; cools candy before packaging |
| Packing Machine | Model: HY-250 Power: 1.92 kW Voltage: 220V/50 Hz Film width: Max 250 mm Size: 3770×670×1450 mm Weight: 800 kg | Packs final product; includes coding function |
Advantages of the Peanut Candy Production Line
- High Output: The production line delivers 300–400 kg/h, suitable for large-scale production.
- Fully Automated: Roasting, peeling, mixing, pressing, cooling, and packaging are all automated, reducing labor.
- Food Safety: All parts in contact with peanuts are made of 304 stainless steel, ensuring no contamination.
- Controllable Process: Roasting, syrup boiling, and mixing temperatures are adjustable for precise candy texture and hardness.
- High Raw Material Purity: The peeling machine achieves 98% purity, minimizing peanut breakage for a smooth candy texture.
- Attractive Finished Product: Cooling conveyor prevents deformation and sticking, producing uniform, smooth candy blocks.
- Durable and Easy to Clean: Mixer lined with PTFE resists high temperature, corrosion, and sticking; PVC conveyor belts are easy to maintain.
- Compact, Integrated Design: Optimized layout saves space, simplifies operation, and ensures smooth production flow.
