A peanut chopping cutting machine is designed to cut whole peanuts into small pieces. It can also process almonds, walnuts, macadamia nuts, cashews, and other nuts. Peanuts can be raw or roasted during cutting. The chopped nuts are widely used in cakes and biscuits.
The machine has a capacity of 100–300 kg/h. Taizy offers two models: a standard version and an upgraded version. Both are suitable for peanut farms, nut processing plants, bakeries, biscuit factories, and nut snack manufacturers.
The peanut pelletizer can cut peanuts into pieces. The conventional size is 1-3mm, 2-4mm, 3-5mm, and 4-8mm. The machine can be adjusted. The size of peanuts can be adjusted by adjusting the handle of the peanut pelletizer. The size of the diced pieces can be processed according to the products produced. For example, after a batch of bread is produced, it is necessary to sprinkle some peanuts on the raw noodles to increase the flavour, and it can be processed according to the size of the bread and the desired effect. Adjusted the peanut cutter.
Products Processed by the Peanut Chopping Cutting Machine
The peanut chopping cutting machine can cut peanuts, walnuts, cashews, hazelnuts, and other nuts.
Processing of Peanut Material
If you want peanuts to be peeled off during production, you can choose to use a peanut peeling machine for peeling, so as to avoid the bitter taste of red peanut peels. If you want cooked peanuts, you can choose to use a roasting machine to roast the peanuts first, then cut the peanuts, and the roasted peanuts will have a stronger aroma.
Model of Peanut Chopping Cutting Machine

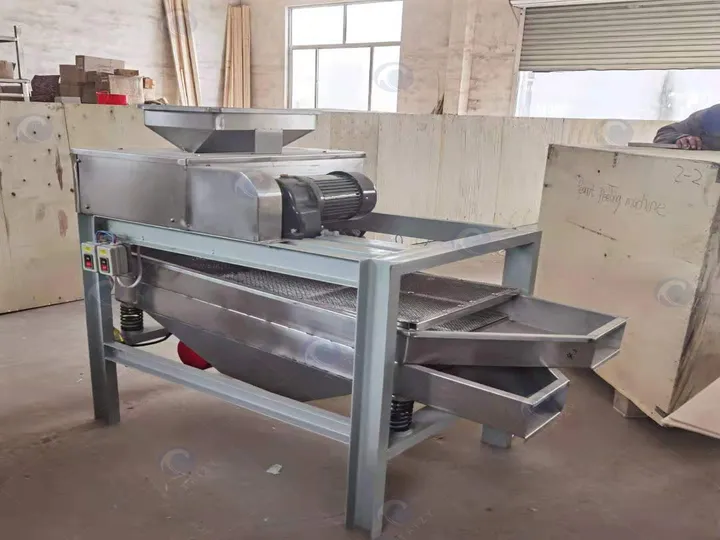

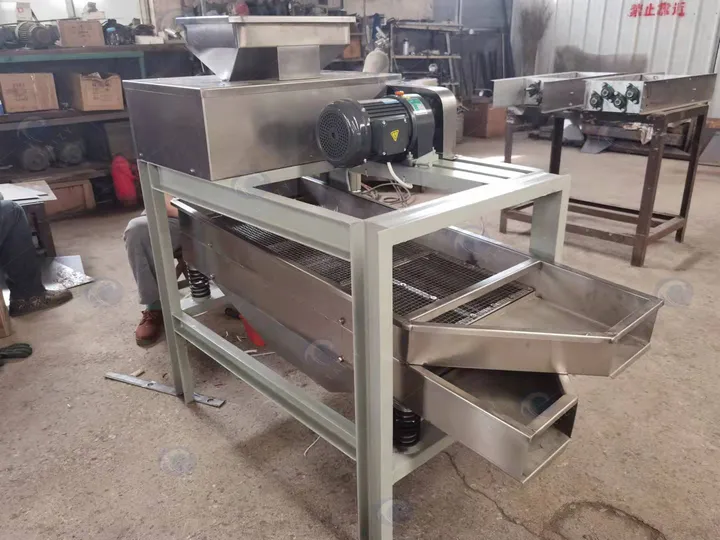

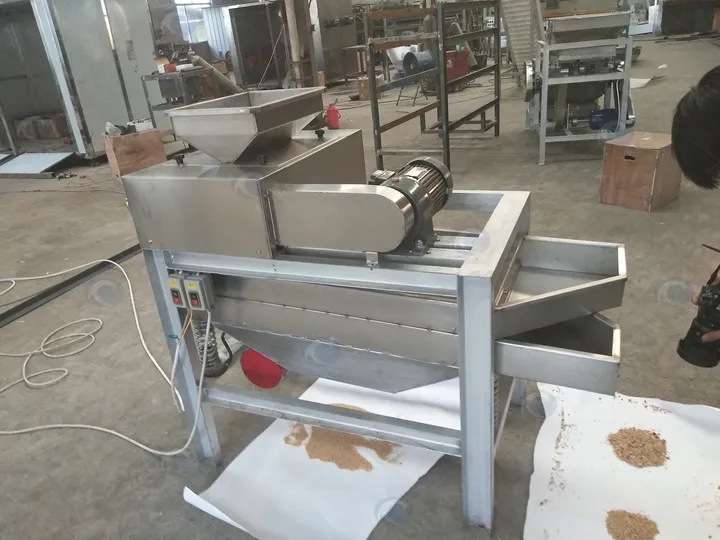

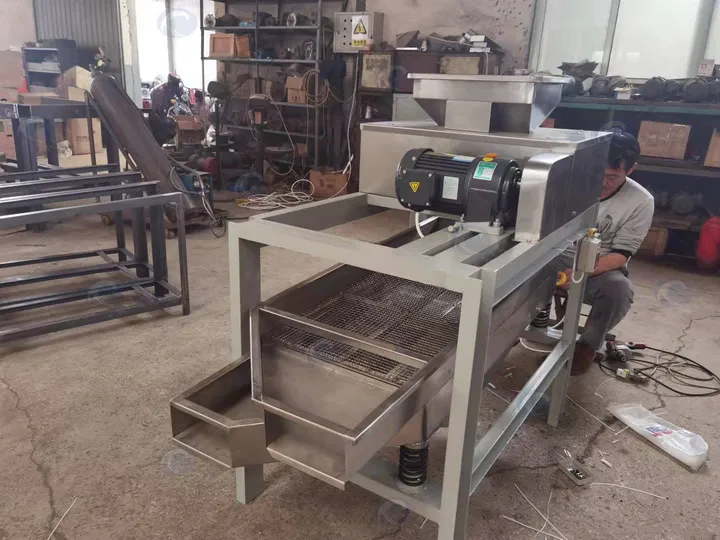

Type 1: Peanut Chopping Machine — Standard Version
Function Introduction
- Roller crushing function: Uses roller pressing and cutting to crush whole or peeled peanuts into uniform peanut granules.
- Adjustable particle size: The roller gap can be adjusted to control the size of the peanut pieces for different processing requirements.
- Stable output capacity: Delivers a continuous capacity of 100–200 kg/h with only 0.93 kW power consumption.
- Low energy consumption: Optimized power configuration ensures efficient operation with low energy use.
- Smooth and reliable operation: Powered by 380 V / 50 Hz three-phase electricity, ensuring stable and continuous performance.
- Compact structure: Machine size 1600 × 800 × 1500 mm, requiring minimal floor space and easy to integrate into production lines.
- 應用範圍廣泛: Suitable for peanut candy, bakery products, snack foods, and peanut pre-processing applications.
Technical Parameters
| 項目 | 規格 |
|---|---|
| 型號 | TZ-1 |
| 功率 | 0.93 kW |
| 電壓 | 380 V / 50 Hz / Three Phase |
| 容量 | 100–200 kg/h |
| Machine Size | 1600 × 800 × 1500 mm |

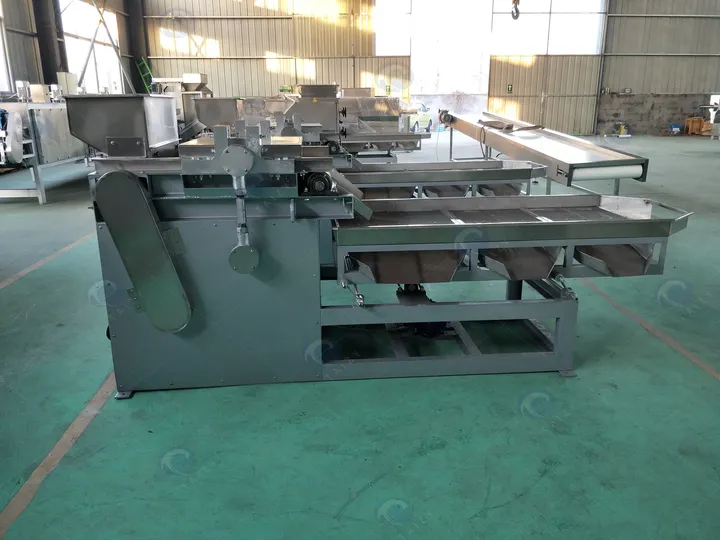

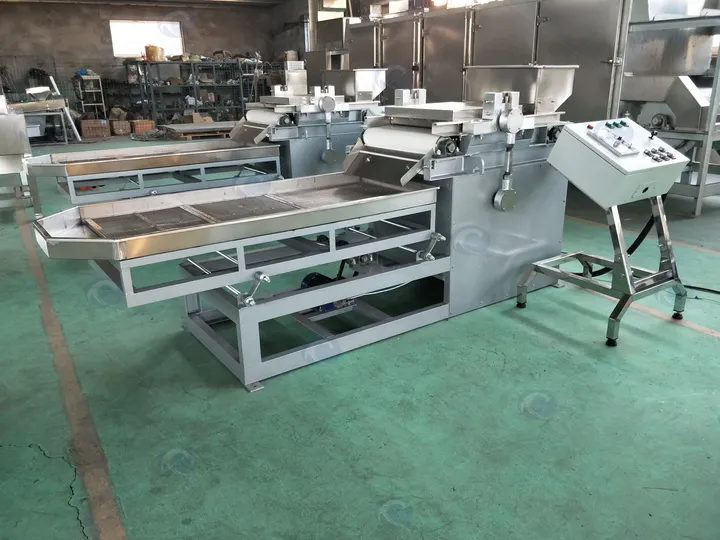

Type 2: Peanut Chopping Machine — Upgraded Version
Function Introduction
- Upgraded cutting design: This new model is improved based on the traditional peanut cutting machine, offering more stable operation and higher cutting accuracy.
- Conveyor belt feeding system: Material is fed by a conveyor belt, allowing peanuts to fall evenly into the hopper, which ensures uniform cutting results.
- Straight blade cutting structure: Peanuts are cut into granules by straight knives, producing clean cuts with less crushing and breakage.
- Grading screen system: After cutting, materials are classified by grading screens. Qualified granules are discharged directly.
- Secondary re-cutting function: Oversized particles are automatically returned for re-cutting, reducing material loss and oil contamination.
- Adjustable blade clearance: The gap between cutting blades can be adjusted to produce different particle sizes.
- Multiple screen options: Different screen sizes can be equipped in the grading section to achieve the required granule specifications.
- Uniform particle size control: Combined cutting and screening ensure consistent and controllable granule size.
- Efficient and stable output: Designed capacity of 200–300公斤/小時, suitable for continuous production.
- Food-grade material options: Hopper, screen body, and food-contact parts are made of stainless steel, ensuring hygiene and easy cleaning.
- 應用範圍廣泛: Suitable for peanut candy, snack foods, bakery products, and peanut deep-processing lines.
Technical Parameters
| 項目 | 規格 |
|---|---|
| 型號 | Straight Blade Cutting Machine (Single/Double Layer optional) |
| 容量 | 200–300公斤/小時 |
| 電壓 | 380 V |
| Total Power | 2.25 kW |
| 頻率 | 50 Hz |
| Machine Size (Single/Double Layer) | 2.25 × 1.05 × 1.4 m (2.86 m height for single layer screen) |
| 重量 | 400 kg |
| 材料 | 2.25 × 1.05 × 1.4 m (2.86 m height for single-layer screen) |
Peanut Chopping Machine — Standard Version VS. Upgraded Version
| 項目 | Upgraded Version | Standard Version |
|---|---|---|
| 功能 | Cuts peanuts into granules using straight blades; materials pass through grading screens for uniform size | Crushes peanuts by roller pressing and cutting into granules or small pieces |
| Cutting Method | Rotating straight blades | Roller pressing + cutting blades |
| Particle Size Control | Adjustable blade gap + grading screens for precise granules | Adjustable roller gap for coarse or fine particles |
| 容量 | 200–300公斤/小時 | 100–200 kg/h |
| 功率 | 2.25 kW | 0.93 kW |
| 電壓 | 380 V | 380 V |
| 頻率 | 50 Hz | 50 Hz |
| 結構 | Includes grading screen system for uniform particle size | Compact roller structure, reduces crushing and powder |
| Application | Peanut candy, snack foods, bakery products, pre-processing for deep peanut processing | Peanut candy, peanut butter, pre-processing for baking and snacks |
| Advantage | High cutting precision, uniform granules, allows secondary cutting | Low power, energy-efficient, compact, small footprint |
